LSP Series Super Slim 600*337.5mm Fine Pixel Pitch 16:9 Aspect Ratio Led Panel Cost Effective Video Wall for 2K/4K/8K LED TV

Super slim 600*337.5mm fine pixel pitch 16:9 led panel cost effective video wall for 2K/4K/8K LED TV

Litestar LSP serie narrow pixel pitch led display uses ultra slim (28mm) panel, the high precise die-casting panel is with 16:9 aspect ratio.The led panel supports fully front service for easier installation and maintenance. It is perfect to make HD/2K/4K/8K led video wall.It has P0.9mm, P1.2mm and P1.5mm pixel pitch options.

Pixel Pitch: P0.9/P1.2/P1.5

Panel Size: 600*337.5mm

Panel Material: Die-casting Aluminum

Panel Weight: 4kgs

Brightness: 800nits

Warranty: 3 Years

Certificate: CE/(EMC+LVD)/FCC/ETL/CETL

Applications: Studio rooms LED display, Conference Rooms LED screen, TV Station LED dispay, Monitoring Rooms LED screen, Shopping malls led video wall etc.

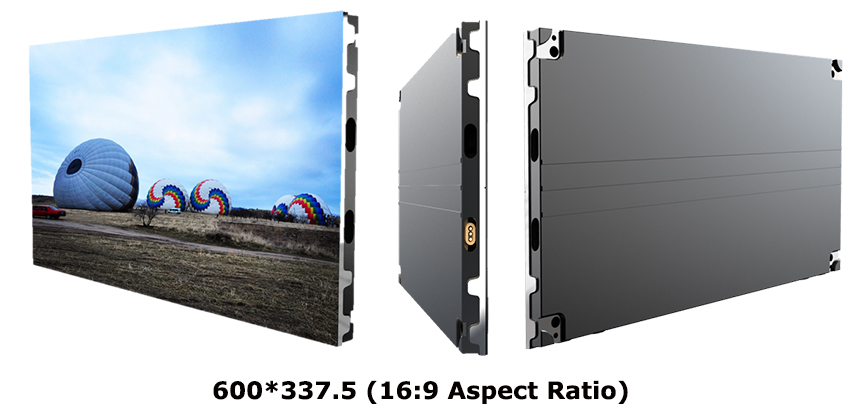

16:9 aspect ratio LED cabinet is perfect to make golden ratio narrow pixel pitch LED video wall.

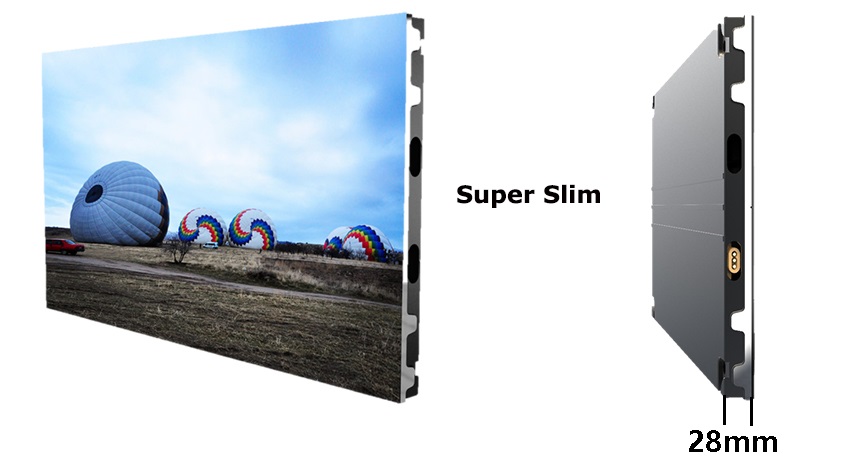

The thickness of our LSP series is only 28mm including the module, which is one of the thinnest cabinet on the market

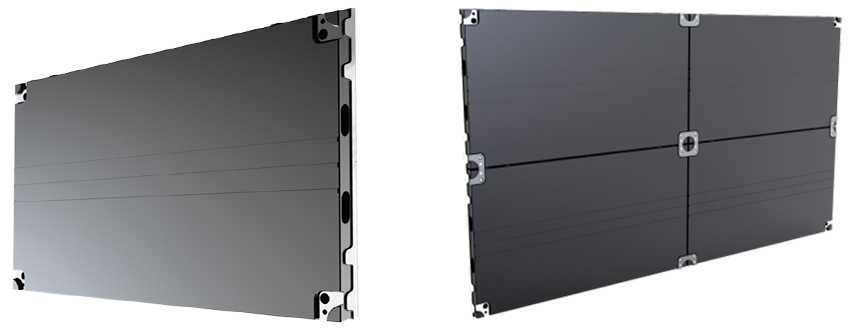

Cableless design.

Signal and power cables are inside of the cabinets, no external cables make the display looks more nice and save installation space.

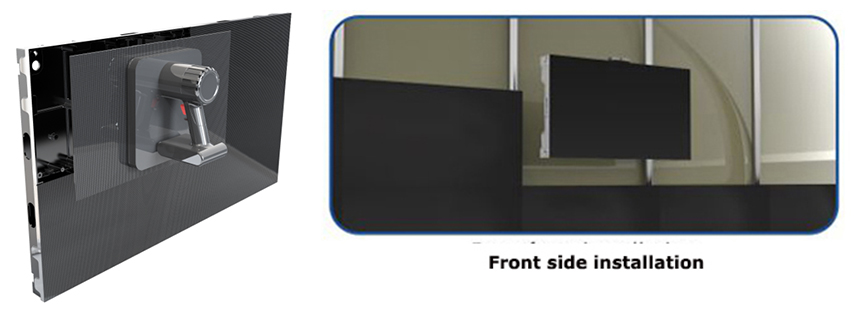

The cabinet has fully front access design. Modules, power supply, receiving card, cables, and other components can be all removed from front.  It is more convenient for installation and maintenance.

Wide viewing angle small pixel pitch led video wall, can have clear picture from sharp viewing angle

Low brightness with high grey level make the fine pixel pitch led display images more vivid.

High refresh frequency ≥3840hz makes the narrow pixel pitch led display with no flickers when take photos

16:9 led cabinet enables fine pixel pitch LED led video wall achieve full 2K/4K/8K displaying effect without compression.

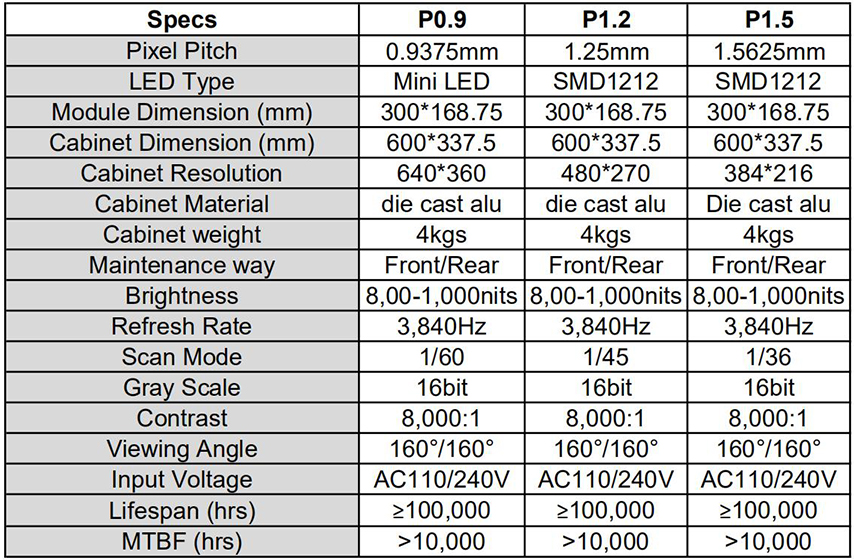

Parameters
