LSS Series Soft & Flexibile LED Module Tiles For LED Cylider and Creative Curve LED Display

Litestar flexible module series is designed for indoor fixed installation application. It can be built up as LED cylinder displays, wave book, convex,

concave and other creative shape led displays for magic stages and creative advertising.

Wider viewing angle of more than 160°.

Magnetic modules support both front and rear service.

Pixel Pitch: P1.56/P1.875/P2/P2.5/P3/P4/P5

Brightness: 800-1,000nits

Panel shape: customized

Warranty: 3 Years

Certificate: CE/(EMC+LVD)/FCC/ETL/CETL

Applications: exhibition, shopping mall, airport, hotel, TV studio station, magic stages etc

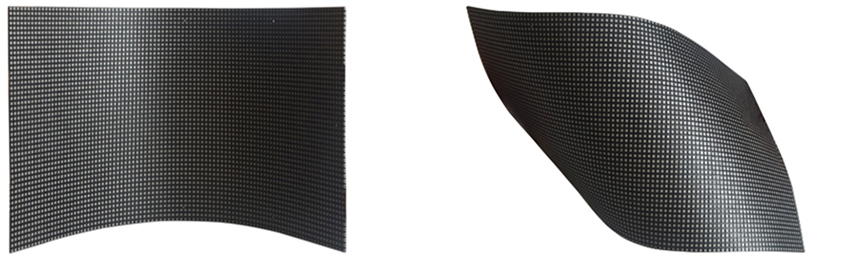

Soft led tiles / modules

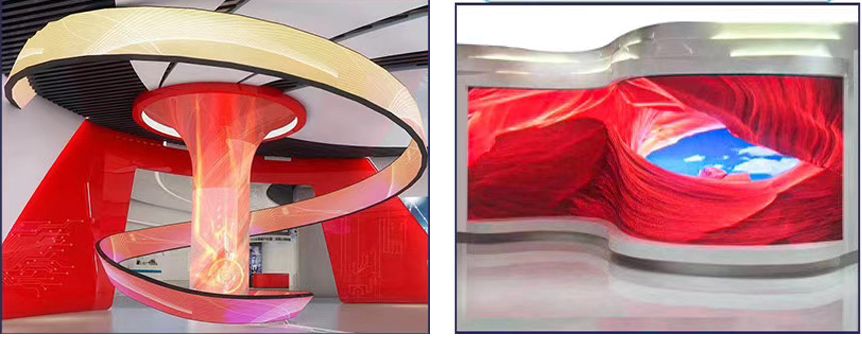

The flexible led tiles enables to make S shape, concave, convex and wave shapes led displays freely

Light weight and slim soft module rubber base are with magnets can be sucked on the steel structure directly without cabinets

Support front service for easier installation and maintenance

Thin & light weight module, it is only 10mm depth with strong magnets can be firmly mounted on steel frame.

High-end and high definition P1.5mm soft LED module to make customized led displays with different shape with high quality picture

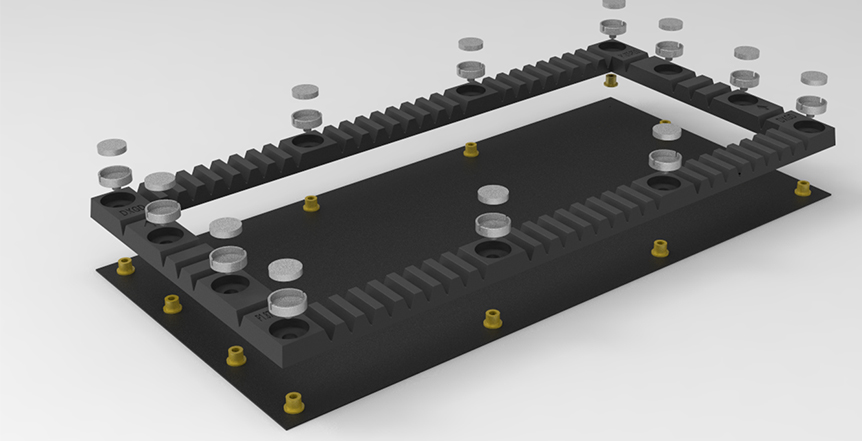

Smart structure design

Besides the glue to fix the rubber base with PCB, There are copper pillars between rubber base and PCB to avoid cracking and edge warping problems.

Smart design guarantee the flatness and seamless of the finished led display effects.

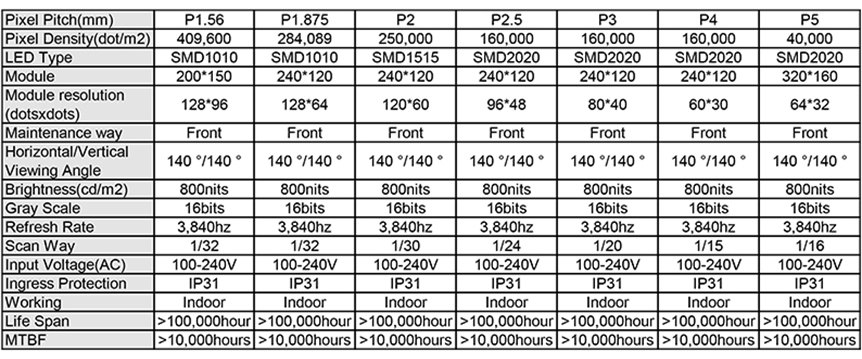

.                                                                                               Parameters
