OFB series front access light weight aluminum die casting LED video wall panel for digital outdoor advertising led billboard sign

OFB series front serviceable LED screen with front access led tiles and light weight die-casting aluminum cabinet. The led display support both front and rear service. The led screen has high brightness SMD(more than 8,000nits) and high brightness DIP (more than 10,000nits) for options. It is perfect for OOH digital signs, fixed installtion led screens and can be also for rental type led video walls. Keywords:OFB series front access light weight aluminum die casting LED video wall panel for digital outdoor advertising led billboard sign, China, Easy maintenance, Manufacturer, Factory

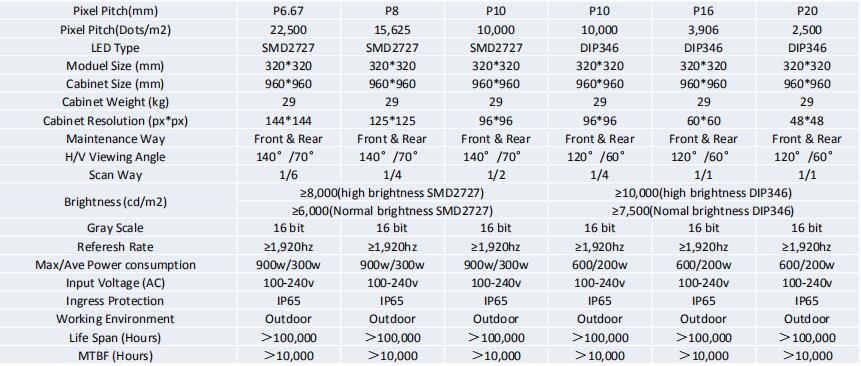

Product Description

Pixel Pitch: P6.67/P8/P10SMD/P10DIP/P16DIP/P20DIP

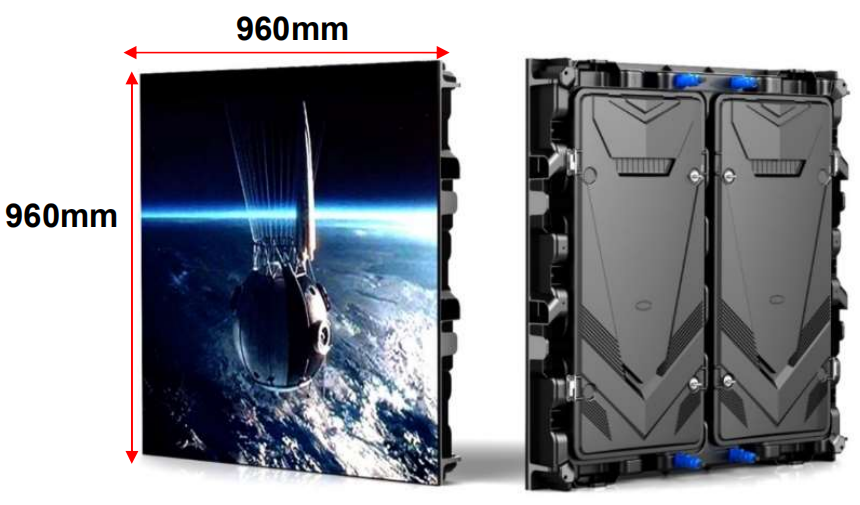

Panel Size: 960*960mm

Panel Material: Aluminum Die-casting

Weight: 29KGS

Brightness: 6,000-10,000nits

Warranty: 3Years

Certificate: CE/(EMC+LVD)/FCC/ETL/CETL

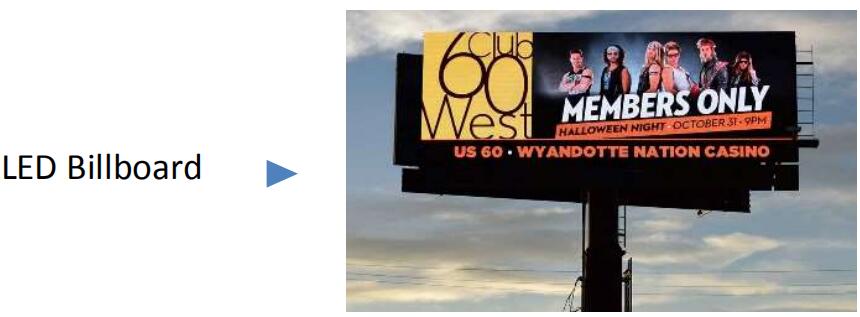

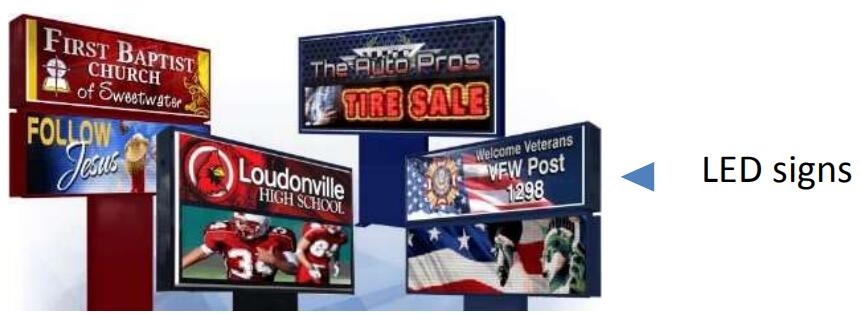

Applications: led billboard, electronic billboard, digital billboard, led walking billboard, led digital billboard, led display billboard, outdoor led advertising, led screen billboard, led outdoor advertising screens, led billboard sign, led display outdoor advertising, lighted billboard signs, mobile led advertising, led outdoor advertising board, led mobile billboard.

Light Weight Aluminum Die-Casting cabinet

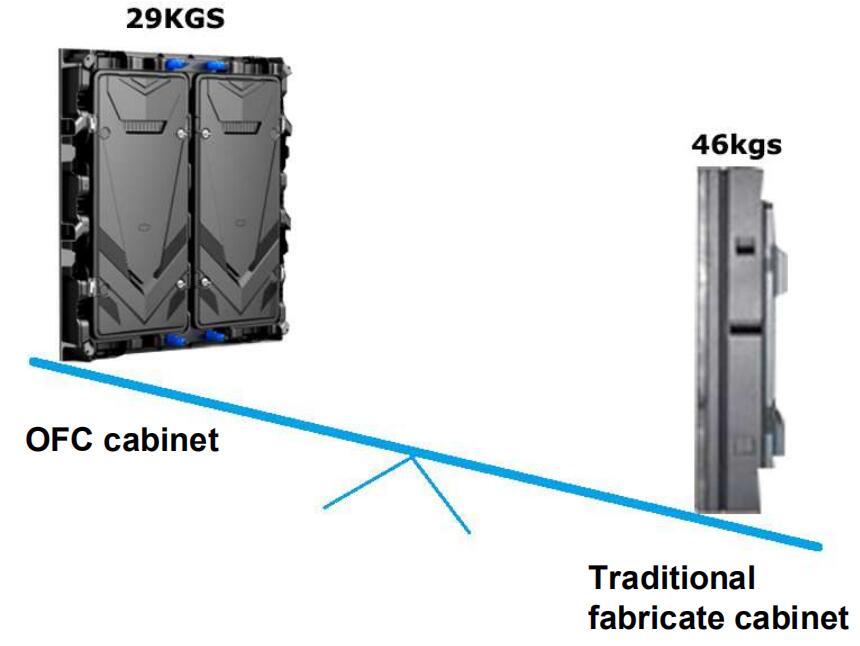

● 960*960mm cabinet weight is only 29kgs. Save transportation cost and steel structure.

● Precise aluminum die-casting led cabinet for seamless splicing and better flatness

Led wall panel

Led video wall panel

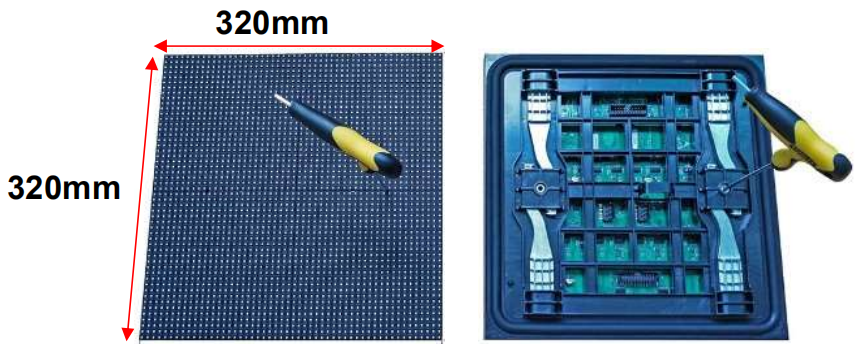

320*320mm front access module

● 320*320mm front service module for all pixel pitches. Enable to switch different pixel pitch modules on the same cabinet.

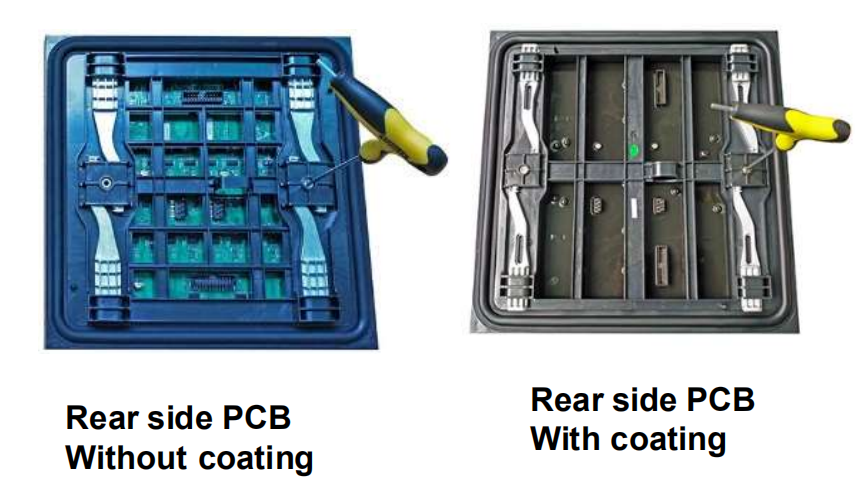

● Module Rear side has coating option. Rear side PCB can be coated for anti-corrosion.

LED displays installed near sea can choose rear side PCB coating for better protection. Front & rear side service options；Multi- brightness options

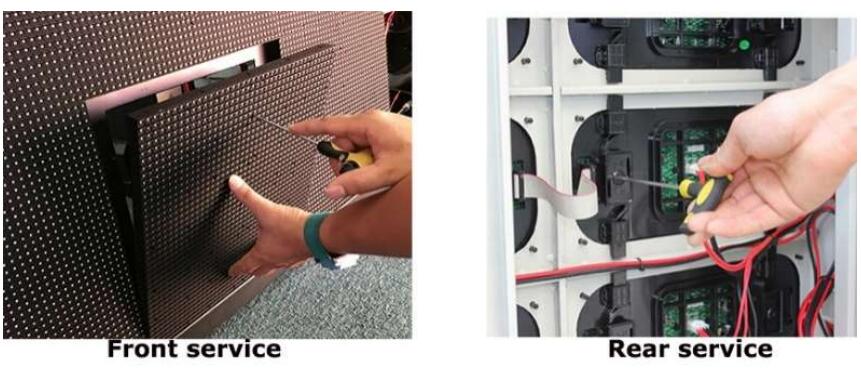

● Modules, power supplies and receiving card can be all accessed from front or rear side

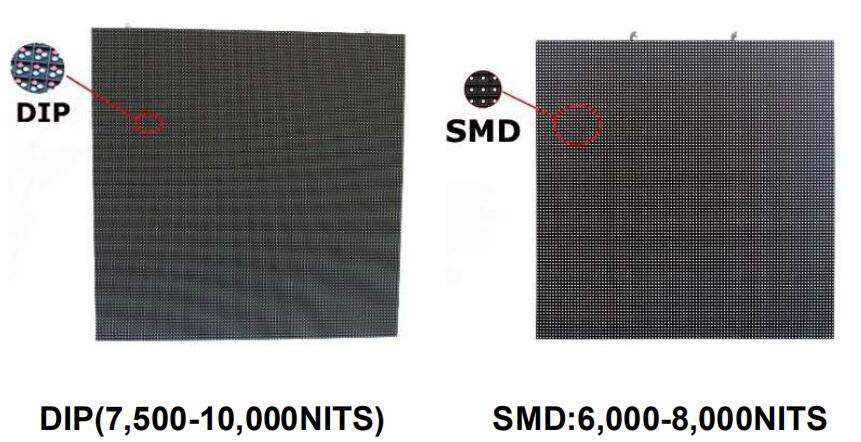

● Have DIP and SMD led displays for options.

● Have different brightness options (6,000-10,000nits)

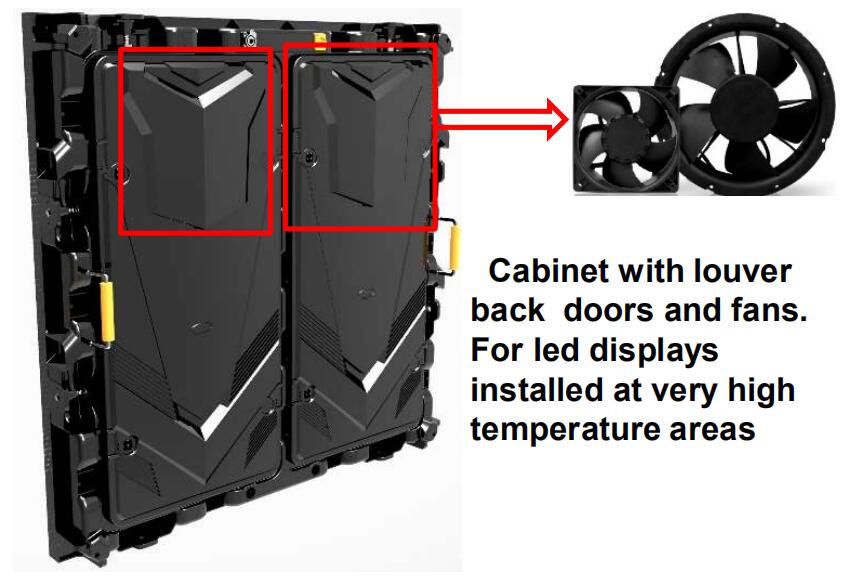

Cabinets with & without fans options

● LED Cabinet with louver back doors can install fans inside of cabinets for better heating dissipation

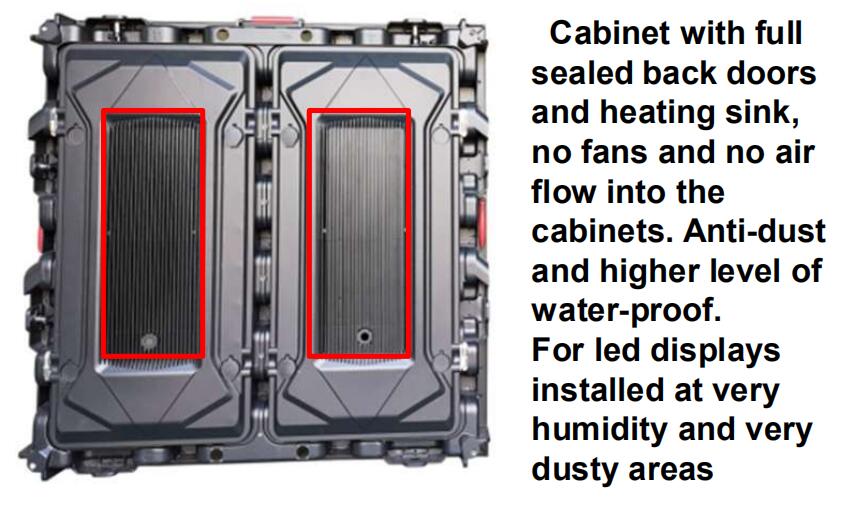

● Full sealed cabinets with heating sink design. No air flow

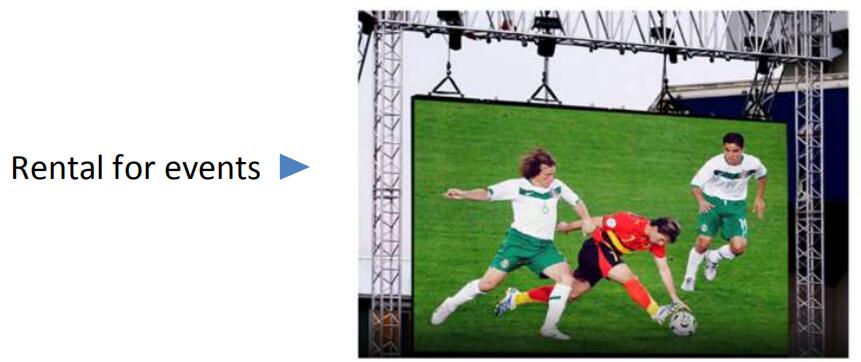

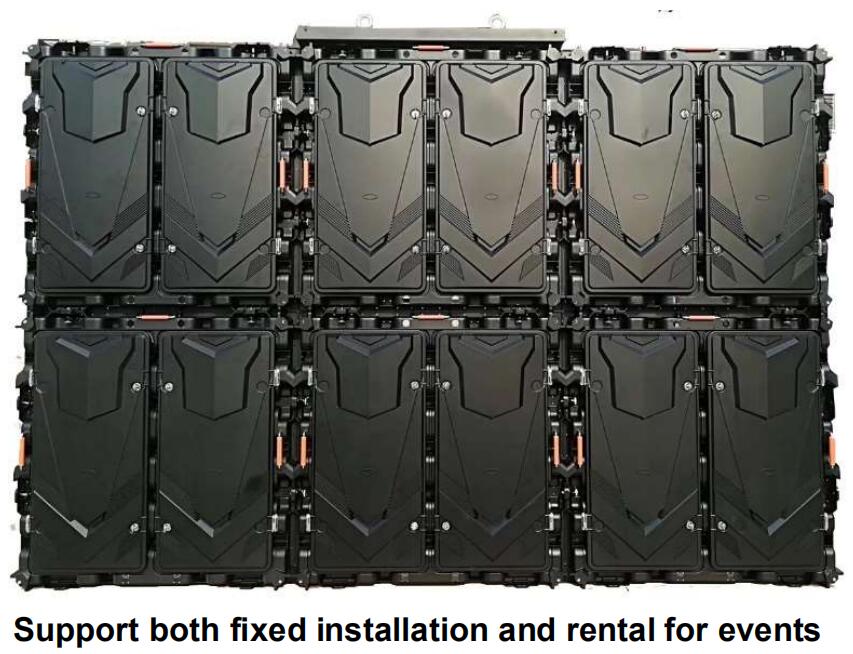

Support both fixed & rental installation

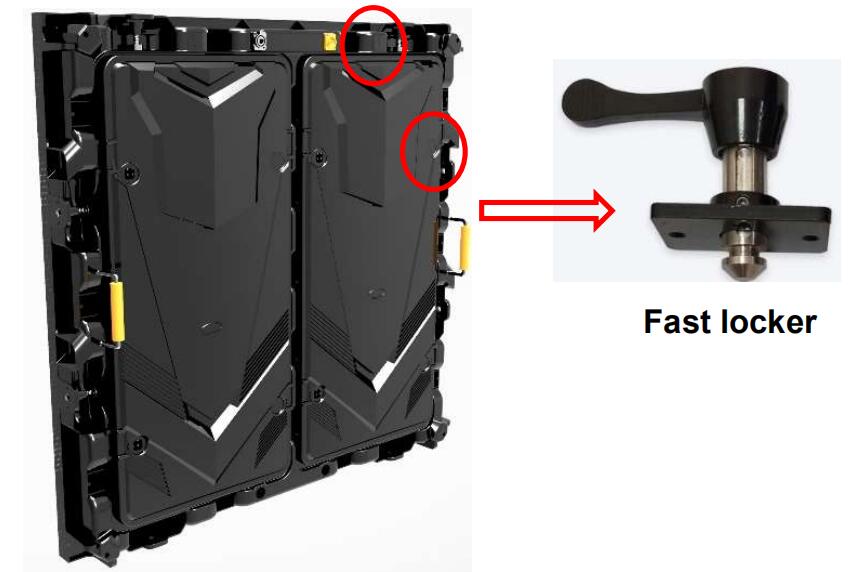

● Cabinets with fast lockers for quicker installation and dismantle and the cabinet is light weight, it is good for both fixed & rental installation.

● Cabinets with hanging beam can support hanging installation
