1mx1m Outdoor Fanless Slim LED Cabinet

1mx1m Outdoor Fanless Slim LED Cabinet

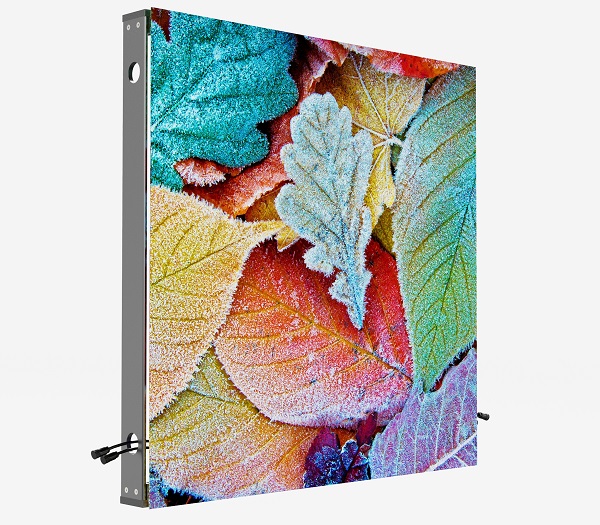

We’re excited to announce that we have a new member for outdoor series products, outdoor 1mx1m modular fan-less LED cabinet.

Modular cabinet size 1mx 1m without any decimals, 1mx1m panel can build any larger size led display with integer meters. It's the best solution for inventory orders.

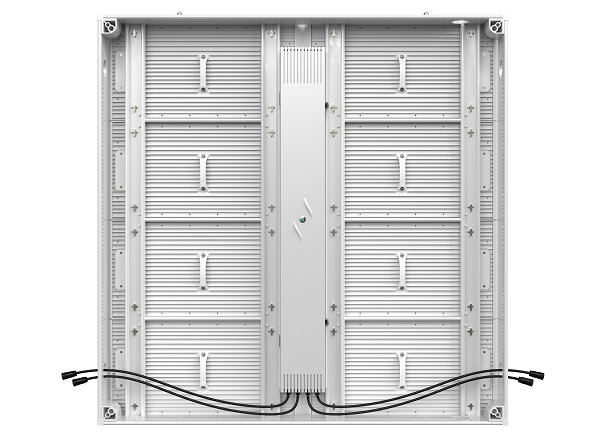

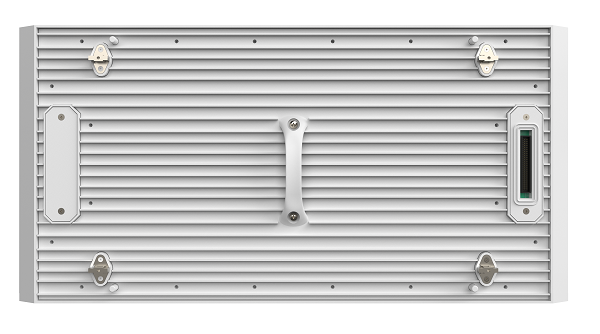

Module size 500x250mm with die-casting aluminum material, it is fire resistance and very solid for outdoor applications, compared with traditional plastic materials module, it can work at very high temperature without distortion.

The slim system box integrated with power supply, HUBs, receiving cards, no ventilation fans required, so the humidity and dust are all isolated.

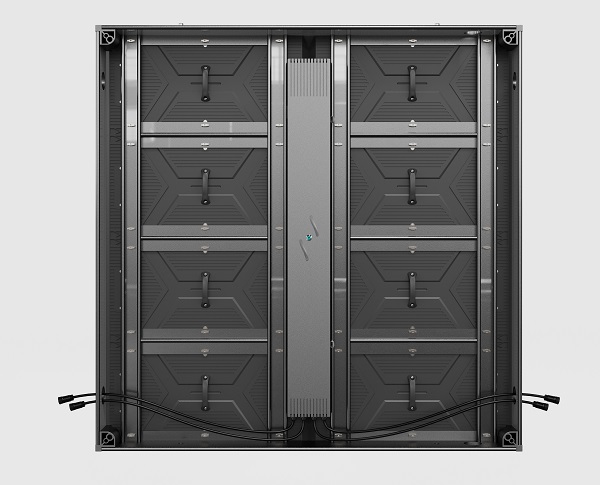

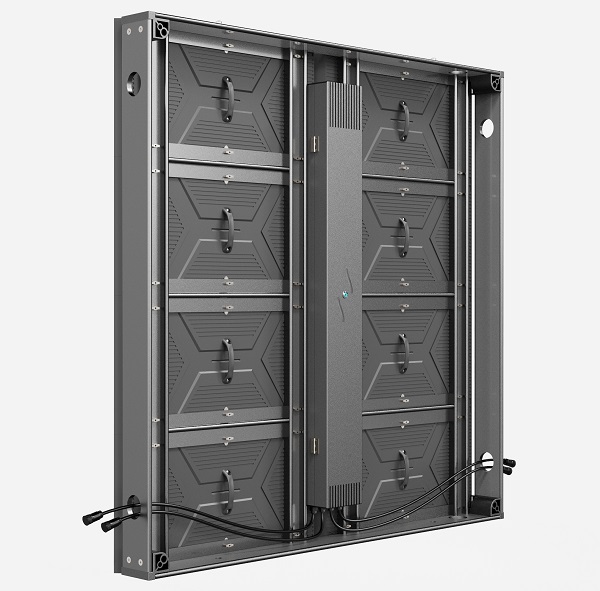

Aluminum profile cabinet with light weight and better heat dissipation. Super slim thickness 85mm and super lightweight 25kgs only. Therefor this product is more portable and could save shipping cost and installation structure cost compared with traditional ponderous fabricate steel cabinet.

There’s no any ribbon cable connection required for the module, they are all “hard connection” between Hubs, more stable connection for data transmission.

Both support front and rear access, modular tiles with fast lock system can operate from the front or back side to assemble or disassemble the tiles from the frames.
